V-GES

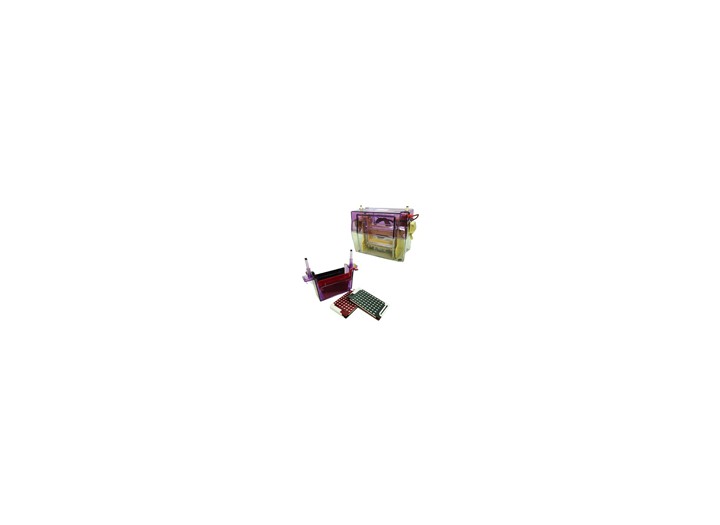

V-GES, the midi vertical electrophoresis system, comprises with tank, electrode module, casting module, and optional blotting module. Electrophoresis tank was built by injection mode technology. Special anti-leak rubber and clasp-release design guarantee leakage free while gel casting. Three thicknesses spacers, 0.5, 0.75 and 1.0mm, and two types comb, 10 and 15 well are available. V-GES is specialized designed for running two gels simultaneously. The system provides the minimal change in temperature on electrophoresis and no extra cooling device needed. ELITE series are recommended power supplies for combination as a perfect electrophoresis system.

E-Blotter

E-Blotter is a high resolution gel transfer apparatus, which includes one electrophoresis tank, one cassette holder and two sandwich blotting cassettes and one pair electrode. It can transfers two gels simultaneously and apply to protein SDS-PAGE and agarose gels.

ELITE series are recommended power supplies to combine as perfect blotting system.

Specification

V-GES

E-blotter

Features

• Interchangeable module for SDS-PAGE electrophoresis and blotting

• Sufficient buffer with no need for extra cooling device

• Sandwich cassette assembly clamps for blotting

• Capable of transferring two gels simultaneously

• Anti-leakage clasp-release gel casting module

• Designed for protein and DNA electrophoresis

• Easy handling and no maintenance design

Ordering Information
