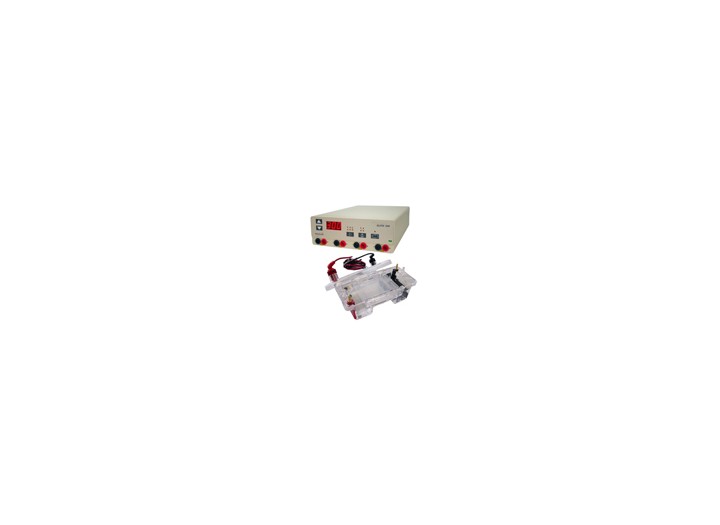

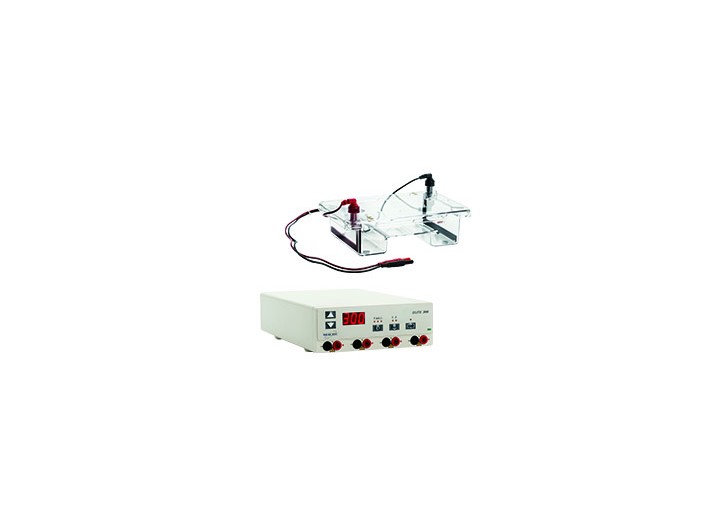

mini GES (10x7cm)

Small size horizontal gel electrophoresis system, Mini GES can accommodate optional trays with 10 x 7cm or 6.5 x 7 cm. Ideal submarine cell made of injection molding technology for DNA and RNA separation as well as GES unit. Unique Dams-claw design guarantees no leakage while gel casting. The system comes with good isolated black and red electrical cables. Quick assembling L type electrode is easy to be cleaned and replaced. Mini GES can run up to 30 samples at a time.

ELITE 300

The Elite 300, provides the maximum voltage output of 300V and current output 400mA, with 4 sets output terminal mainly for routine electrophoresis with nucleic acid and SDS-PAGE. With high accuracy and stable output applicable for wet transfer. Easy control Constant V/A with automatic crossover, adjustable voltage and current in minimum 1 V and 1 mA increment provide flexible condition and parameter settings. Three digits seven segments LED readout voltage, current and time. Error messages includes no load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, and current differential alarm for easy troubleshooting. IQ / PQ / OQ protocol is available.

Features

• Unique anti-leakage design for gel casting system

• Fluorescence ruler printed on the sample tray

• UV transparent sample tray

• Trustable and accurate power source in the market

• Small footprint, stackable, outshell use fire resistance material

• Up to four sets output

• Membrane key pad for functional setting

• Three digit seven segment LED read out voltage,current and time

• Complete error messages for trouble shooting

Specification

Mini GES

ELITE 300

Ordering Information
