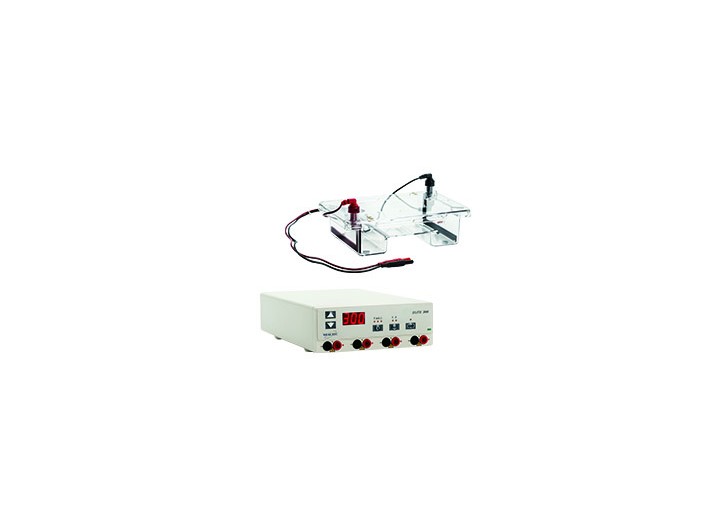

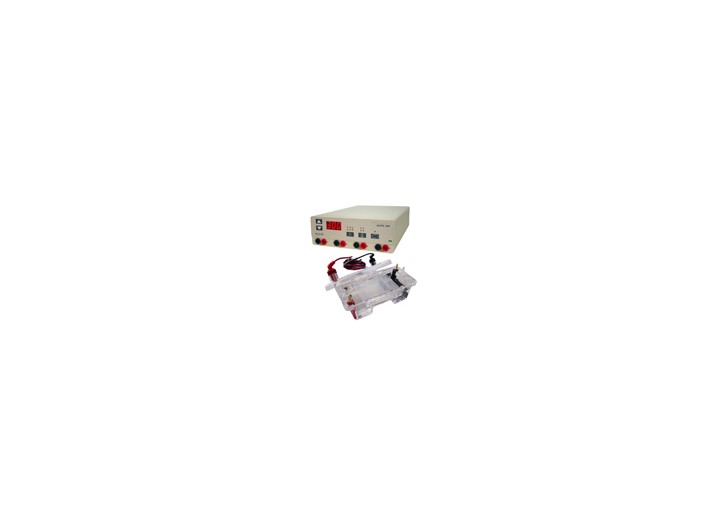

    mini GES(6.5x7cm)+ELITE 300

    Brand Wealtec
    Cat No. 1011012

    Quote Contact

    main text

    Detail view

    mini GES (6.5x7cm)

    Small size horizontal gel electrophoresis system, Mini GES can accommodate optional trays with 10 x 7cm or 6.5 x 7 cm. Ideal submarine cell made of injection molding technology for DNA and RNA separation as well as GES unit. Unique Dams-claw design guarantees no leakage while gel casting. The system comes with good isolated black and red electrical cables. Quick assembling L type electrode is easy to be cleaned and replaced. Mini GES can run up to 30 samples at a time.



    ELITE 300

    The Elite 300, provides the maximum voltage output of 300V and current output 400mA, with 4 sets output terminal mainly for routine electrophoresis with nucleic acid and SDS-PAGE. With high accuracy and stable output applicable for wet transfer. Easy control Constant V/A with automatic crossover, adjustable voltage and current in minimum 1 V and 1 mA increment provide flexible condition and parameter settings. Three digits seven segments LED readout voltage, current and time. Error messages includes no load detection, sudden load change, over voltage protection, automatic recovery after power failure, short circuit, and current differential alarm for easy troubleshooting. IQ / PQ / OQ protocol is available.







    Features

    • Unique anti-leakage design for gel casting system

    • Fluorescence ruler printed on the sample tray

    • UV transparent sample tray

    • Trustable and accurate power source in the market

    • Small footprint, stackable, outshell use fire resistance material

    • Up to four sets output

    • Membrane key pad for functional setting

    • Three digit seven segment LED read out voltage,current and time

    • Complete error messages for trouble shooting







    Specification



    Mini GES

    Material

    UV transparent poly carbonate

    Fluorescent ruler

    Yes

    Tray size (mm)

    65 x 70

    Electrode

    Gold-plated electrode with platinum wire

    Leakage free gel casting

    Dams-claw*

    Number of teeth

    15, 10

    Thickness of comb (mm)

    1.0

    Sample throughput

    Max. 30

    Buffer Volume (ml)

    200 to 270

    Cable

    Safety black & red cable

    Physical dimensions (mm)

    200 x 95 x 85 (W x D x H)

    Weight (kg)

    1

    Certification

    CE

    The spec is subject to change without prior notice.

    *Patent no.:203646/ US6,576,109 B1 / 2000-006995 / 20017041.4

    *Dams-claw is the patent of Wealtec Bioscience



    ELITE 300

    Voltage automatic crossover

    Yes

    Current automatic crossover

    Yes

    Output Terminals

    4 sets

    Current adjust steps

    4-400mA in 1 mA

    Voltage in 1 volt steps

    10-300 V

    Output power

    75 W max.

    Operating Temperature

    0-40

    Timer

    0-999 mins

    Display

    3 digit 7 seg LED

    Touch Pad

    Yes

    Alarm

    Yes

    Input Power

    120V / 230V , 50-60 Hz

    Physical dimensions (mm)

    240 x 320 x 73 (W x D x H)

    Weight (kg)

    2.0

    Certification

    CE

    *The spec is subject to change without prior notice.

    **ELITE 200/300/200U/300U/600U power supply comply with EN 61010-1


    Ordering Information

    Catalog Number

    Description

    1011012

    mini GES Cell complete system (6.5 x 7cm Tray) + ELITE 300 Power Supply system, 230V
