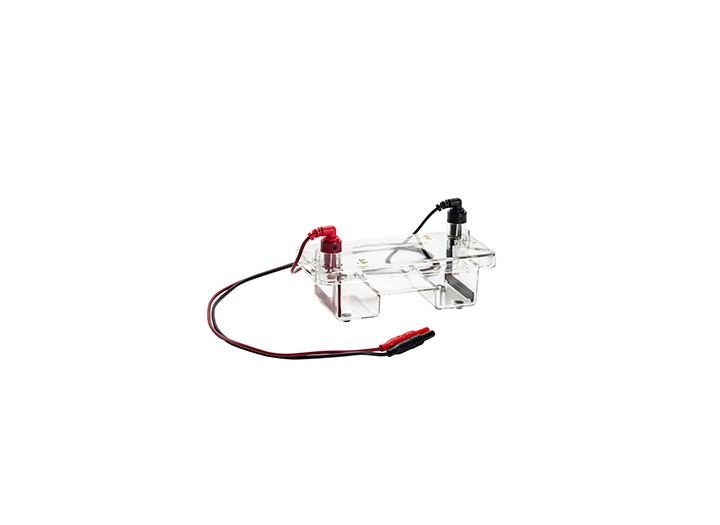

Small size horizontal gel electrophoresis system, Mini GES can accommodate optional trays with 10 x 7cm or 6.5 x 7 cm.
Ideal submarine cell made of injection molding technology for DNA and RNA separation as well as GES unit.
Unique Dams-claw design guarantees no leakage while gel casting. The system comes with good isolated black and red electrical cables.
Quick assembling L type electrode is easy to be cleaned and replaced. Mini GES can run up to 30 samples at a time.
Features
Unique anti-leakage design for gel casting system
Fluorescence ruler printed on the sample tray
UV transparent sample tray
Specification
Fluorescent ruler | Yes |
Tray size (mm) | 65 x 70 / 100 x 70 |
Electrode | Gold-plated electrode with platinum wire |
Leakage free gel casting | Dams-claw* |
Number of teeth | 15, 10 |
Thickness of comb (mm) | 0.75, 1.0, 1.5 |
Sample throughput | Max. 30 |
Buffer Volume (ml) | 200 to 270 |
Cable | Safety black & red cable |
Physical dimensions (mm) | 200 x 95 x 85 (W x D x H) |
Weight (kg) | 1 |
Certification | CE |
Recommended Power Supply | ELITE / ELITE U series |
The spec is subject to change without prior notice. | |
Ordering Information
Catalog Number | Description |
1011000 | mini GES Cell complete system, mini GES cell accompanies with a 10 x 7cm tray, one 10 x 1.0mm teeth and one 15 x 1.0mm teeth fixed-height comb. |
1011001 | mini GES Cell complete system, mini GES cell accompanies with a 6.5 x 7cm tray, one 10 x 1.0mm teeth and one 15 x 1.0mm teeth fixed-height comb. |
